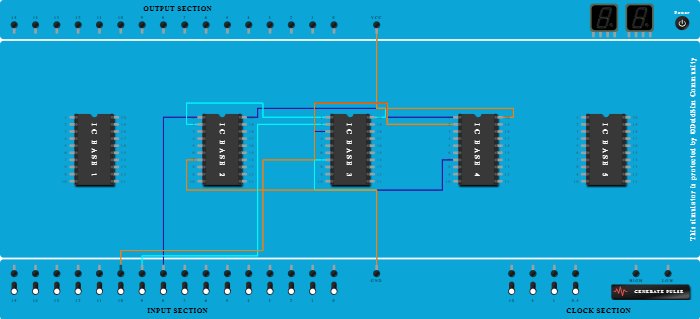

Procedure

  1. Connect VCC Port to Pin-20 (Input & Output) of ICBase-2.
  2. Connect VCC Port to Pin-20 (Input & Output) of ICBase-3.
  3. Connect VCC Port to Pin-20 (Input & Output) of ICBase-4.
  4. Connect GND Port to Pin-7 (Input & Output) of ICBase-4.
  5. Connect GND Port to Pin-7 (Input & Output) of ICBase-3.
  6. Connect GND Port to Pin-7 (Input & Output) of ICBase-2.
  7. Connect Pin-1 (Input & Output) of ICBase-2 to Input-8.
  8. Connect Pin-1 (Input & Output) of ICBase-3 to Pin-2 (Input & Output) of ICBase-2.
  9. Connect Pin-2 (Input & Output) of ICBase-4 to Pin-3 (Input & Output) of ICBase-3.
  10. Connect Pin-1 (Input & Output) of ICBase-4 to Pin-3 (Input & Output) of ICBase-3.
  11. Connect Pin-2 (Input & Output) of ICBase-3 to Input-9.
  12. Connect Pin-2 (Input & Output) of ICBase-4 to Input-10.
