Integrated Circuits Used

74LS04 74LS05

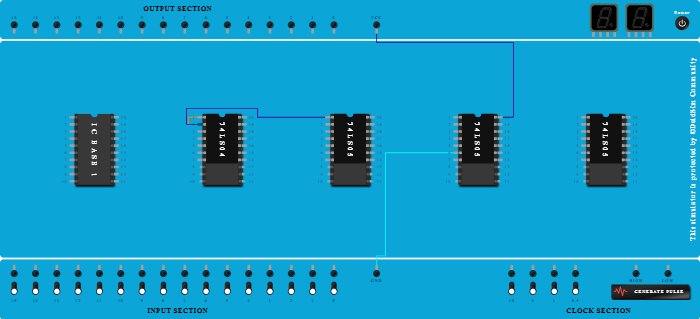

Procedure

  1. Add IC 74LS04 into ICBase-2 (74LS04).
  2. Add IC 74LS05 into ICBase-3 (74LS05).
  3. Add IC 74LS05 into ICBase-4 (74LS05).
  4. Add IC 74LS05 into ICBase-5 (74LS05).
  5. Connect Pin-20 (VCC) of ICBase-4 (74LS05) to VCC Port.
  6. Connect Pin-6 (Output) of ICBase-4 (74LS05) to GND Port.
  7. Connect Pin-1 (Input) of ICBase-2 (74LS04) to Pin-2 (Output) of ICBase-2 (74LS04).
  8. Connect Pin-1 (Input) of ICBase-3 (74LS05) to Pin-2 (Output) of ICBase-2 (74LS04).
