Untitled circuit

Muhammed Sinan Aziz

• Created on Feb 26, 2026 • 0 • 0 • 1

Edit Circuit Copy Circuit Try Yourself

Untitled circuit

100%

Integrated Circuits Used

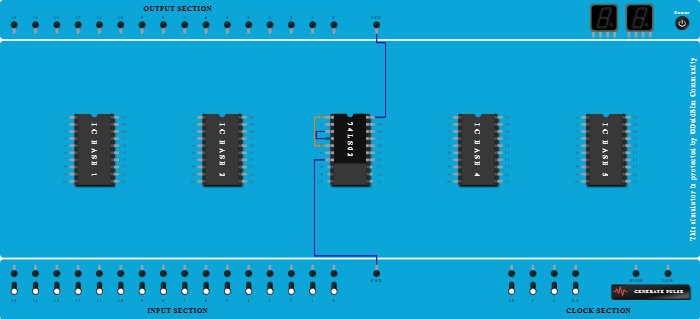

Procedure

Connect Pin-7 (Ground) of ICBase-3 (74LS02) to GND Port.
Connect Pin-20 (VCC) of ICBase-3 (74LS02) to VCC Port.
Add IC 74LS02 into ICBase-3 (74LS02).
Connect Pin-5 (Input) of ICBase-3 (74LS02) to Pin-1 (Output) of ICBase-3 (74LS02).
Connect Pin-3 (Input) of ICBase-3 (74LS02) to Pin-4 (Output) of ICBase-3 (74LS02).
