New Circuit

Bharatkumar
Bharatkumar
• Created on Feb 26, 2026 • 0 • 0 • 0
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

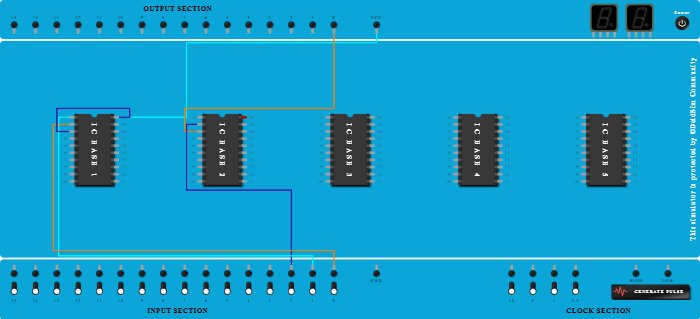

Procedure

  1. Connect Pin-20 (Input & Output) of ICBase-1 to VCC Port.
  2. Connect Output-0 to Pin-3 (Input & Output) of ICBase-2.
  3. Connect Input-2 to Pin-2 (Input & Output) of ICBase-2.
  4. Connect Pin-1 (Input & Output) of ICBase-1 to Input-1.
  5. Connect Pin-2 (Input & Output) of ICBase-1 to Input-0.
  6. Connect Pin-20 (Input & Output) of ICBase-1 to Pin-3 (Input & Output) of ICBase-1.
