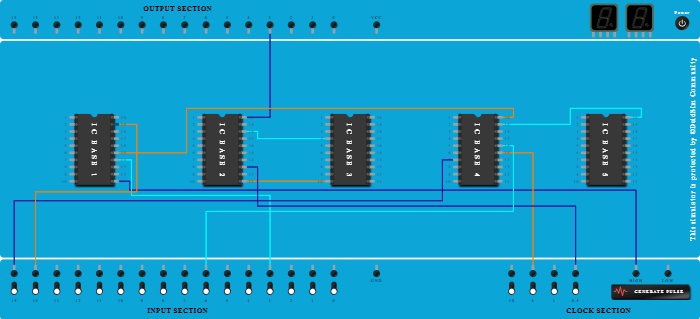

Procedure

  1. Connect Output-3 to Pin-20 (Input & Output) of ICBase-2.
  2. Connect Pin-4 (Input & Output) of ICBase-3 to Pin-18 (Input & Output) of ICBase-2.
  3. Connect Pin-10 (Input & Output) of ICBase-3 to Pin-11 (Input & Output) of ICBase-2.
  4. Connect Manual clock Port to Pin-11 (Input & Output) of ICBase-1.
  5. Connect Input-3 to Pin-14 (Input & Output) of ICBase-1.
  6. Connect Clock port of 5Hz frequency to Pin-15 (Input & Output) of ICBase-4.
  7. Connect Input-15 to Pin-7 (Input & Output) of ICBase-4.
  8. Connect Pin-19 (Input & Output) of ICBase-4 to Pin-20 (Input & Output) of ICBase-5.
  9. Connect Pin-15 (Input & Output) of ICBase-1 to Pin-20 (Input & Output) of ICBase-4.
  10. Connect Clock port of 0.5Hz frequency to Pin-13 (Input & Output) of ICBase-2.
  11. Connect Input-6 to Pin-16 (Input & Output) of ICBase-4.
  12. Connect Input-14 to Pin-19 (Input & Output) of ICBase-1.
