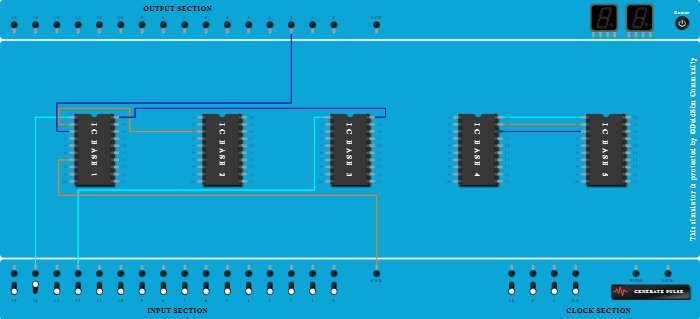

Procedure

  1. Connect Input-14 to Pin-1 (Input & Output) of ICBase-1.
  2. Connect Pin-3 (Input & Output) of ICBase-2 to Pin-2 (Input & Output) of ICBase-1.
  3. Connect Output-2 to Pin-3 (Input & Output) of ICBase-1.
  4. Connect Input-12 to Pin-1 (Input & Output) of ICBase-3.
  5. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  6. Connect Pin-20 (Input & Output) of ICBase-3 to Pin-20 (Input & Output) of ICBase-1.
  7. Connect Pin-1 (Input & Output) of ICBase-5 to Pin-20 (Input & Output) of ICBase-4.
  8. Connect Pin-19 (Input & Output) of ICBase-4 to Pin-2 (Input & Output) of ICBase-5.
  9. Connect Pin-3 (Input & Output) of ICBase-5 to Pin-18 (Input & Output) of ICBase-4.
