New Circuit

kancham reddy sekhar
kancham reddy sekhar
• Created on Feb 25, 2026 • 0 • 0 • 0
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

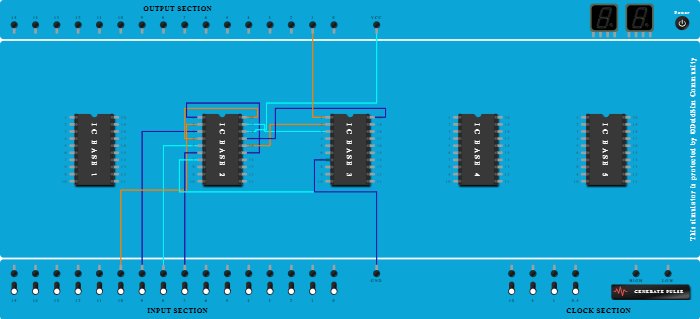

Procedure

  1. Connect Input-9 to Pin-3 (Input & Output) of ICBase-2.
  2. Connect Input-8 to Pin-5 (Input & Output) of ICBase-2.
  3. Connect Input-10 to Pin-2 (Input & Output) of ICBase-2.
  4. Connect Input-7 to Pin-6 (Input & Output) of ICBase-2.
  5. Connect GND Port to Pin-7 (Input & Output) of ICBase-2.
  6. Connect Pin-20 (Input & Output) of ICBase-2 to Pin-4 (Input & Output) of ICBase-2.
  7. Connect Pin-15 (Input & Output) of ICBase-2 to Pin-1 (Input & Output) of ICBase-2.
  8. Connect Pin-3 (Input & Output) of ICBase-3 to Pin-19 (Input & Output) of ICBase-2.
  9. Connect Pin-2 (Input & Output) of ICBase-3 to Pin-16 (Input & Output) of ICBase-2.
  10. Connect Pin-20 (Input & Output) of ICBase-3 to Pin-17 (Input & Output) of ICBase-2.
  11. Connect VCC Port to Pin-18 (Input & Output) of ICBase-2.
  12. Connect Output-1 to Pin-1 (Input & Output) of ICBase-3.
  13. Connect GND Port to Pin-7 (Input & Output) of ICBase-3.
