New Circuit

veera vardhan kumar
veera vardhan kumar
• Created on Feb 23, 2026 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Integrated Circuits Used

74LS11

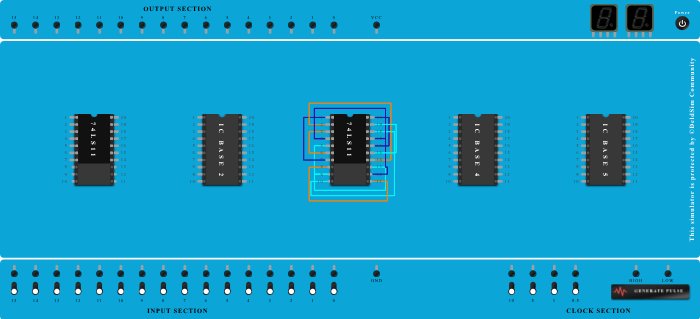

Procedure

  1. Add IC 74LS11 into ICBase-1 (74LS11).
  2. Connect Pin-17 (Input) of ICBase-3 (74LS11) to Pin-4 (Input) of ICBase-3 (74LS11).
  3. Connect Pin-9 (Input & Output) of ICBase-3 (74LS11) to Pin-5 (Input) of ICBase-3 (74LS11).
  4. Connect Pin-3 (Input) of ICBase-3 (74LS11) to Pin-6 (Output) of ICBase-3 (74LS11).
  5. Connect Pin-1 (Input) of ICBase-3 (74LS11) to Pin-7 (Ground) of ICBase-3 (74LS11).
  6. Connect Pin-13 (Input & Output) of ICBase-3 (74LS11) to Pin-9 (Input & Output) of ICBase-3 (74LS11).
  7. Connect Pin-2 (Input) of ICBase-3 (74LS11) to Pin-14 (Output) of ICBase-3 (74LS11).
  8. Connect Pin-20 (VCC) of ICBase-3 (74LS11) to Pin-16 (Input) of ICBase-3 (74LS11).
  9. Connect Pin-10 (Input & Output) of ICBase-3 (74LS11) to Pin-18 (Output) of ICBase-3 (74LS11).
  10. Connect Pin-8 (Input & Output) of ICBase-3 (74LS11) to Pin-11 (Input & Output) of ICBase-3 (74LS11).
  11. Connect Pin-4 (Input) of ICBase-3 (74LS11) to Pin-12 (Input & Output) of ICBase-3 (74LS11).
  12. Connect Pin-19 (Input) of ICBase-3 (74LS11) to Pin-15 (Input) of ICBase-3 (74LS11).
  13. Add IC 74LS11 into ICBase-3 (74LS11).
