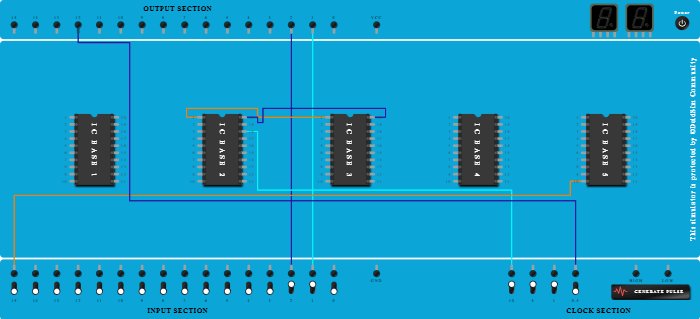

Procedure

  1. Connect Input-2 to Output-2.
  2. Connect Input-1 to Output-1.
  3. Connect Pin-1 (Input & Output) of ICBase-3 to Pin-1 (Input & Output) of ICBase-2.
  4. Connect Pin-20 (Input & Output) of ICBase-3 to Pin-20 (Input & Output) of ICBase-2.
  5. Connect Clock port of 10Hz frequency to Pin-18 (Input & Output) of ICBase-2.
  6. Connect Input-15 to Pin-10 (Input & Output) of ICBase-5.
  7. Connect Clock port of 0.5Hz frequency to Output-12.
