Procedure

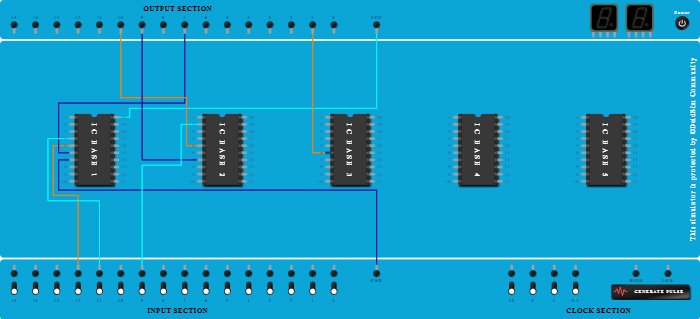

  1. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  2. Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
  3. Connect Input-12 to Pin-5 (Input & Output) of ICBase-1.
  4. Connect Output-7 to Pin-6 (Input & Output) of ICBase-1.
  5. Connect Input-11 to Pin-4 (Input & Output) of ICBase-1.
  6. Connect Output-10 to Pin-5 (Input & Output) of ICBase-2.
  7. Connect Output-9 to Pin-7 (Input & Output) of ICBase-2.
  8. Connect Input-9 to Pin-2 (Input & Output) of ICBase-2.
  9. Connect Output-1 to Pin-6 (Input & Output) of ICBase-3.
