New Circuit

Agastya
Agastya
• Created on Feb 23, 2026 • 0 • 0 • 3
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

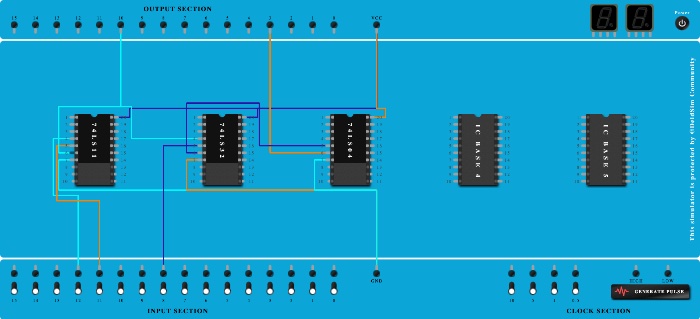

Integrated Circuits Used

74LS11 74LS32 74LS04

Procedure

  1. Add IC 74LS11 into ICBase-1 (74LS11).
  2. Add IC 74LS32 into ICBase-2 (74LS32).
  3. Add IC 74LS04 into ICBase-3 (74LS04).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS11).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS11).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS32).
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS32).
  8. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS04).
  10. Connect Input-8 to Pin-5 (Input) of ICBase-2 (74LS32).
  11. Connect Input-12 to Pin-4 (Input) of ICBase-1 (74LS11).
  12. Connect Input-11 to Pin-5 (Input) of ICBase-1 (74LS11).
  13. Connect Pin-4 (Input) of ICBase-2 (74LS32) to Pin-6 (Output) of ICBase-1 (74LS11).
  14. Connect Output-3 to Pin-6 (Output) of ICBase-3 (74LS04).
  15. Connect Pin-5 (Input) of ICBase-3 (74LS04) to Pin-6 (Output) of ICBase-2 (74LS32).
  16. Connect Output-10 to Pin-6 (Output) of ICBase-1 (74LS11).
