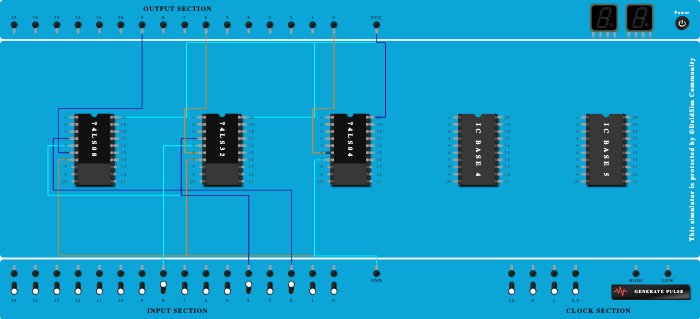

Integrated Circuits Used

74LS08 74LS32 74LS04

Procedure

  1. Connect Pin-20 (VCC) of ICBase-1 (74LS08) to VCC Port.
  2. Connect Pin-7 (Ground) of ICBase-1 (74LS08) to GND Port.
  3. Connect Input-2 to Pin-4 (Input) of ICBase-1 (74LS08).
  4. Connect Input-4 to Pin-5 (Input) of ICBase-1 (74LS08).
  5. Connect Output-9 to Pin-6 (Output) of ICBase-1 (74LS08).
  6. Add IC 74LS08 into ICBase-1 (74LS08).
  7. Add IC 74LS32 into ICBase-2 (74LS32).
  8. Connect Pin-20 (VCC) of ICBase-2 (74LS32) to VCC Port.
  9. Connect Pin-7 (Ground) of ICBase-2 (74LS32) to GND Port.
  10. Connect Input-4 to Pin-4 (Input) of ICBase-2 (74LS32).
  11. Connect Input-8 to Pin-5 (Input) of ICBase-2 (74LS32).
  12. Connect Output-6 to Pin-6 (Output) of ICBase-2 (74LS32).
  13. Add IC 74LS04 into ICBase-3 (74LS04).
  14. Connect Pin-20 (VCC) of ICBase-3 (74LS04) to VCC Port.
  15. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  16. Connect Output-0 to Pin-6 (Output) of ICBase-3 (74LS04).
