Integrated Circuits Used

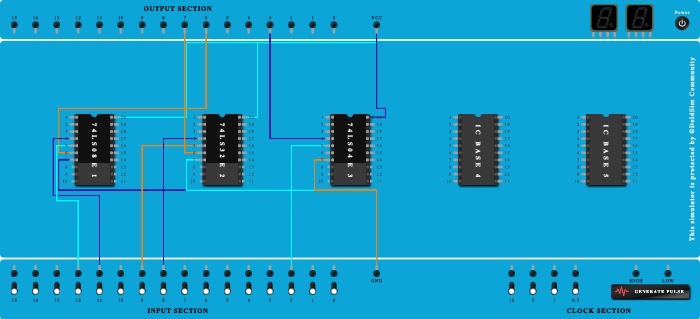

Procedure

  1. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS08).
  2. Connect Pin-20 (VCC) of ICBase-1 (74LS08) to VCC Port.
  3. Connect Output-7 to Pin-6 (Output) of ICBase-1 (74LS08).
  4. Connect Input-11 to Pin-4 (Input) of ICBase-1 (74LS08).
  5. Connect Input-12 to Pin-5 (Input) of ICBase-1 (74LS08).
  6. Add IC 74LS08 into ICBase-1 (74LS08).
  7. Add IC 74LS32 into ICBase-2 (74LS32).
  8. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS32).
  9. Connect Input-9 to Pin-5 (Input) of ICBase-2 (74LS32).
  10. Connect Input-8 to Pin-4 (Input) of ICBase-2 (74LS32).
  11. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS32).
  12. Connect Output-6 to Pin-6 (Output) of ICBase-2 (74LS32).
  13. Add IC 74LS04 into ICBase-3 (74LS04).
  14. Connect Output-3 to Pin-4 (Output) of ICBase-3 (74LS04).
  15. Connect Input-2 to Pin-5 (Input) of ICBase-3 (74LS04).
  16. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  17. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS04).
