Untitled circuit
100%

Integrated Circuits Used

74LS08 74LS10

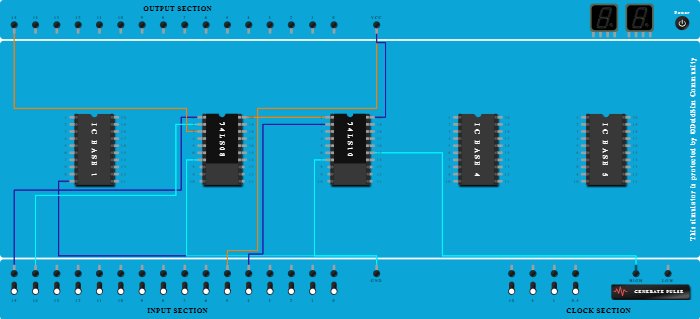

Procedure

  1. Add IC 74LS08 into ICBase-2 (74LS08).
  2. Connect Pin-10 (Input & Output) of ICBase-1 to GND Port.
  3. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS08).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS08).
  5. Connect Input-15 to Pin-1 (Input) of ICBase-2 (74LS08).
  6. Connect Input-14 to Pin-2 (Input) of ICBase-2 (74LS08).
  7. Connect Output-15 to Pin-3 (Output) of ICBase-2 (74LS08).
  8. Add IC 74LS10 into ICBase-3 (74LS10).
  9. Connect Pin-20 (VCC) of ICBase-3 (74LS10) to VCC Port.
  10. Connect Pin-7 (Ground) of ICBase-3 (74LS10) to GND Port.
  11. Connect Pin-1 (Input) of ICBase-3 (74LS10) to Input-5.
  12. Connect Pin-2 (Input) of ICBase-3 (74LS10) to Input-4.
  13. Connect Pin-15 (Input) of ICBase-3 (74LS10) to Manual clock Port.
