Integrated Circuits Used

74LS32 74LS08 74LS04

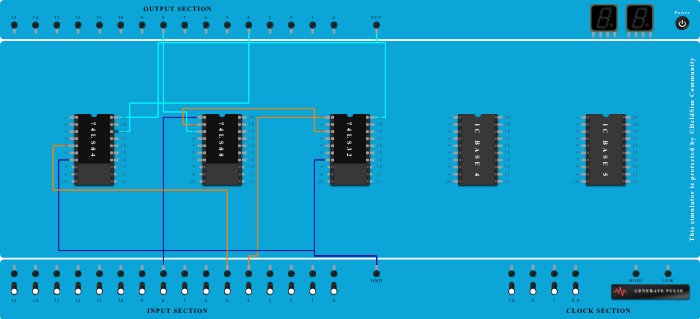

Procedure

  1. Add IC 74LS32 into ICBase-3 (74LS32).
  2. Connect Pin-7 (Ground) of ICBase-3 (74LS32) to GND Port.
  3. Connect Pin-20 (VCC) of ICBase-3 (74LS32) to VCC Port.
  4. Connect Pin-1 (Input) of ICBase-3 (74LS32) to Input-4.
  5. Add IC 74LS08 into ICBase-2 (74LS08).
  6. Connect Input-8 to Pin-1 (Input) of ICBase-2 (74LS08).
  7. Connect Output-8 to Pin-3 (Output) of ICBase-2 (74LS08).
  8. Connect Pin-2 (Input) of ICBase-2 (74LS08) to Pin-3 (Output) of ICBase-3 (74LS32).
  9. Add IC 74LS04 into ICBase-1 (74LS04).
  10. Connect Pin-7 (Ground) of ICBase-1 (74LS04) to GND Port.
  11. Connect Pin-20 (VCC) of ICBase-1 (74LS04) to VCC Port.
  12. Connect Input-5 to Pin-5 (Input) of ICBase-1 (74LS04).
  13. Connect Output-4 to Pin-18 (Output) of ICBase-1 (74LS04).
