New Circuit

Sathwik.G
Sathwik.G
• Created on Feb 20, 2026 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Integrated Circuits Used

74LS32

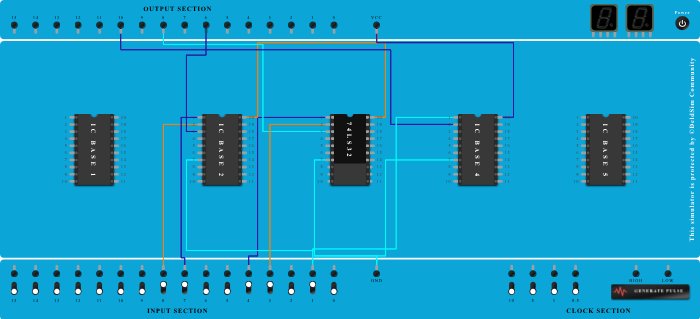

Procedure

  1. Add IC 74LS32 into ICBase-3 (74LS32).
  2. Connect Pin-7 (Ground) of ICBase-3 (74LS32) to GND Port.
  3. Connect Pin-20 (VCC) of ICBase-3 (74LS32) to VCC Port.
  4. Connect Pin-1 (Input) of ICBase-3 (74LS32) to Input-4.
  5. Connect Pin-7 (Input & Output) of ICBase-2 to GND Port.
  6. Connect Pin-20 (Input & Output) of ICBase-2 to VCC Port.
  7. Connect Pin-20 (Input & Output) of ICBase-4 to VCC Port.
  8. Connect Pin-7 (Input & Output) of ICBase-4 to GND Port.
  9. Connect Pin-2 (Input & Output) of ICBase-2 to Input-8.
  10. Connect Pin-1 (Input & Output) of ICBase-2 to Input-7.
  11. Connect Pin-3 (Output) of ICBase-3 (74LS32) to Output-8.
  12. Connect Pin-2 (Input) of ICBase-3 (74LS32) to Input-3.
  13. Connect Pin-2 (Input & Output) of ICBase-4 to Output-10.
  14. Connect Pin-1 (Input & Output) of ICBase-4 to Input-1.
  15. Connect Pin-3 (Input & Output) of ICBase-2 to Output-6.
