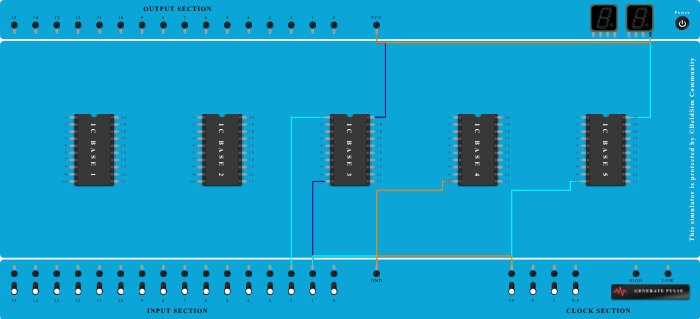

Procedure

  1. Connect Pin-1 (Input & Output) of ICBase-3 to Input-2.
  2. Connect Input-1 to Pin-10 (Input & Output) of ICBase-3.
  3. Connect GND Port to Input-1.
  4. Connect GND Port to Pin-10 (Input & Output) of ICBase-4.
  5. Connect Clock port of 10Hz frequency to Pin-10 (Input & Output) of ICBase-5.
  6. Connect GND Port to Clock port of 10Hz frequency.
  7. Connect Pin-20 (Input & Output) of ICBase-3 to VCC Port.
  8. Connect Seven segment display 1 to Pin-20 (Input & Output) of ICBase-5.
  9. Connect VCC Port to Seven segment display 1.
