New Circuit

Vemula
Vemula Saipranay
• Created on Feb 20, 2026 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself

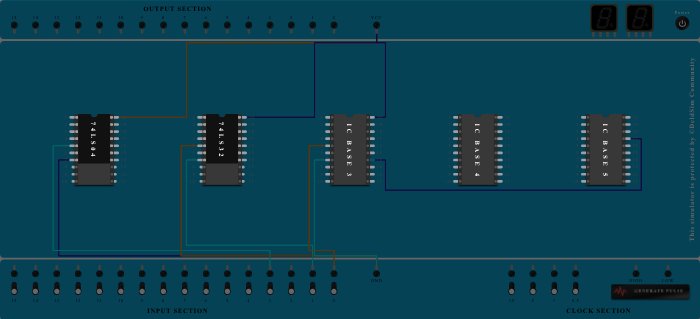

New Circuit
100%

Integrated Circuits Used

74LS04 74LS32

Procedure

  1. Add IC 74LS04 into ICBase-1 (74LS04).
  2. Connect Pin-7 (Ground) of ICBase-1 (74LS04) to GND Port.
  3. Connect Pin-5 (Input) of ICBase-1 (74LS04) to Input-3.
  4. Connect Pin-20 (VCC) of ICBase-1 (74LS04) to VCC Port.
  5. Add IC 74LS32 into ICBase-2 (74LS32).
  6. Connect Pin-20 (VCC) of ICBase-2 (74LS32) to VCC Port.
  7. Connect Pin-7 (Ground) of ICBase-2 (74LS32) to Input-1.
  8. Connect Pin-5 (Input) of ICBase-2 (74LS32) to GND Port.
  9. Connect Pin-20 (Input & Output) of ICBase-3 to VCC Port.
  10. Connect Pin-7 (Input & Output) of ICBase-3 to GND Port.
  11. Connect Pin-5 (Input & Output) of ICBase-3 to Input-0.
  12. Connect Pin-17 (Input & Output) of ICBase-5 to Pin-14 (Input & Output) of ICBase-3.
