Untitled circuit

k.mani shashankari
k.mani shashankari
• Created on Feb 20, 2026 • 0 • 0 • 0
Edit Circuit Copy Circuit Try Yourself
Untitled circuit
100%

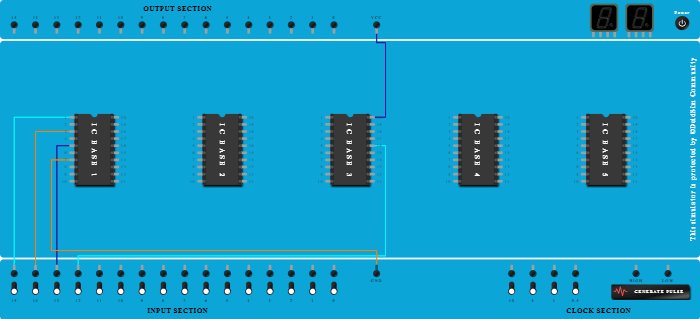

Procedure

  1. Connect Pin-20 (Input & Output) of ICBase-3 to VCC Port.
  2. Connect Pin-1 (Input & Output) of ICBase-1 to Input-15.
  3. Connect Pin-3 (Input & Output) of ICBase-1 to Input-14.
  4. Connect Pin-5 (Input & Output) of ICBase-1 to Input-13.
  5. Connect Pin-16 (Input & Output) of ICBase-3 to Input-12.
  6. Connect Pin-7 (Input & Output) of ICBase-1 to GND Port.
