New Circuit
100%

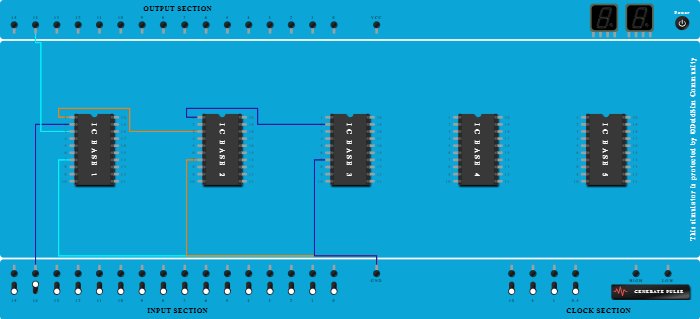

Procedure

  1. Connect Pin-2 (Input & Output) of ICBase-1 to Input-14.
  2. Connect Pin-7 (Input & Output) of ICBase-1 to GND Port.
  3. Connect GND Port to Pin-7 (Input & Output) of ICBase-2.
  4. Connect GND Port to Pin-7 (Input & Output) of ICBase-3.
  5. Connect Pin-3 (Input & Output) of ICBase-1 to Output-14.
  6. Connect Pin-3 (Input & Output) of ICBase-2 to Pin-1 (Input & Output) of ICBase-1.
  7. Connect Pin-2 (Input & Output) of ICBase-3 to Pin-1 (Input & Output) of ICBase-2.
