cockpit warning light control

TUKKAPURAMBHAVANI
TUKKAPURAMBHAVANI
• Created on Feb 19, 2026 • 0 • 0 • 3
Edit Circuit Copy Circuit Try Yourself

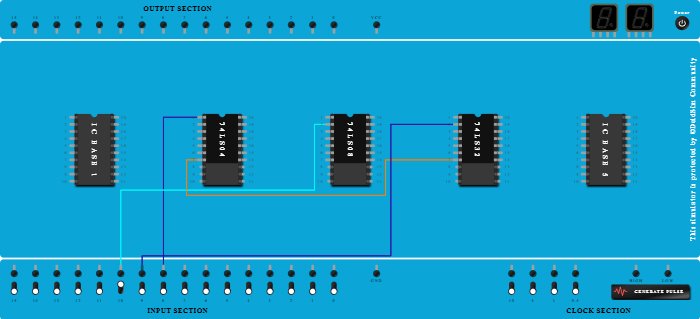

cockpit warning light control
100%

Integrated Circuits Used

74LS04 74LS08 74LS32

Procedure

  1. Add IC 74LS04 into ICBase-2 (74LS04).
  2. Add IC 74LS08 into ICBase-3 (74LS08).
  3. Add IC 74LS32 into ICBase-4 (74LS32).
  4. Connect Input-8 to Pin-1 (Input) of ICBase-2 (74LS04).
  5. Connect Input-10 to Pin-2 (Input) of ICBase-3 (74LS08).
  6. Connect Pin-7 (Ground) of ICBase-4 (74LS32) to Pin-7 (Ground) of ICBase-2 (74LS04).
  7. Connect Pin-2 (Input) of ICBase-4 (74LS32) to Input-9.
