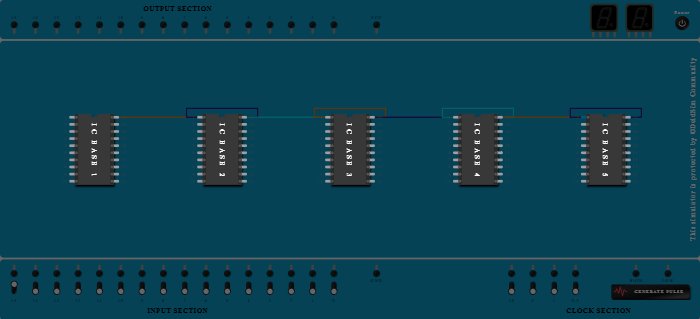

Procedure

  1. Connect Pin-1 (Input & Output) of ICBase-2 to Pin-20 (Input & Output) of ICBase-1.
  2. Connect Pin-20 (Input & Output) of ICBase-2 to Pin-1 (Input & Output) of ICBase-2.
  3. Connect Pin-1 (Input & Output) of ICBase-3 to Pin-20 (Input & Output) of ICBase-2.
  4. Connect Pin-20 (Input & Output) of ICBase-3 to Pin-1 (Input & Output) of ICBase-3.
  5. Connect Pin-1 (Input & Output) of ICBase-4 to Pin-20 (Input & Output) of ICBase-3.
  6. Connect Pin-20 (Input & Output) of ICBase-4 to Pin-1 (Input & Output) of ICBase-4.
  7. Connect Pin-1 (Input & Output) of ICBase-5 to Pin-20 (Input & Output) of ICBase-4.
  8. Connect Pin-20 (Input & Output) of ICBase-5 to Pin-1 (Input & Output) of ICBase-5.
