Integrated Circuits Used

74LS03 74LS08 74LS32

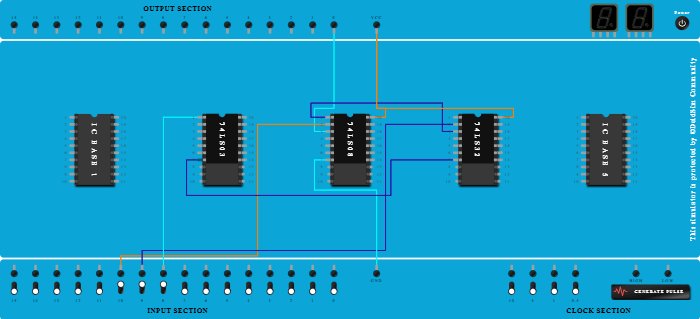

Procedure

  1. Add IC 74LS03 into ICBase-2 (74LS03).
  2. Add IC 74LS08 into ICBase-3 (74LS08).
  3. Add IC 74LS32 into ICBase-4 (74LS32).
  4. Connect Output-0 to Pin-3 (Output) of ICBase-3 (74LS08).
  5. Connect Pin-2 (Input) of ICBase-3 (74LS08) to Input-10.
  6. Connect Pin-2 (Input) of ICBase-4 (74LS32) to Input-9.
  7. Connect Pin-1 (Input) of ICBase-2 (74LS03) to Input-8.
  8. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS08).
  9. Connect Pin-1 (Input) of ICBase-3 (74LS08) to Pin-3 (Output) of ICBase-4 (74LS32).
  10. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS08).
  11. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS32).
  12. Connect Pin-7 (Ground) of ICBase-4 (74LS32) to Pin-7 (Ground) of ICBase-2 (74LS03).
