AND gates
100%

Procedure

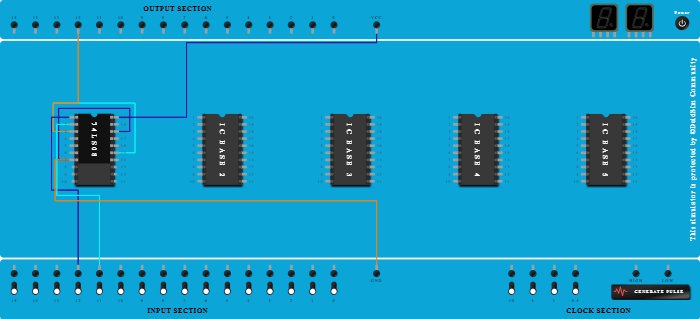

  1. Connect Pin-18 (Input) of ICBase-1 (74LS08) to Pin-7 (Ground) of ICBase-1 (74LS08).
  2. Add IC 74LS08 into ICBase-1 (74LS08).
  3. Connect Pin-3 (Output) of ICBase-1 (74LS08) to Pin-15 (Input) of ICBase-1 (74LS08).
  4. Connect Output-12 to Pin-3 (Output) of ICBase-1 (74LS08).
  5. Connect Input-12 to Pin-1 (Input) of ICBase-1 (74LS08).
  6. Connect Input-11 to Pin-2 (Input) of ICBase-1 (74LS08).
  7. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS08).
  8. Connect Pin-20 (VCC) of ICBase-1 (74LS08) to VCC Port.
