Integrated Circuits Used

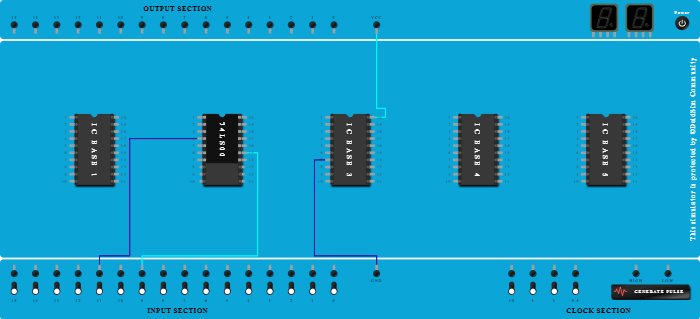

Procedure
- Connect Pin-4 (Input) of ICBase-2 (74LS00) to Input-11.
- Connect Pin-15 (Input) of ICBase-2 (74LS00) to Input-9.
- Connect Pin-7 (Input & Output) of ICBase-3 to GND Port.
- Connect VCC Port to Pin-20 (Input & Output) of ICBase-3.
- Add IC 74LS00 into ICBase-2 (74LS00).
