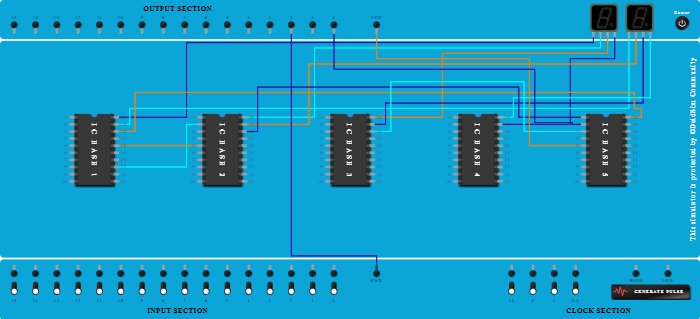

Procedure

  1. Connect Pin-20 (Input & Output) of ICBase-1 to Seven segment display 2.
  2. Connect Pin-20 (Input & Output) of ICBase-2 to Seven segment display 2.
  3. Connect Pin-20 (Input & Output) of ICBase-3 to Seven segment display 2.
  4. Connect Pin-19 (Input & Output) of ICBase-4 to Seven segment display 2.
  5. Connect Seven segment display 1 to Pin-19 (Input & Output) of ICBase-1.
  6. Connect Pin-19 (Input & Output) of ICBase-2 to Seven segment display 1.
  7. Connect Seven segment display 1 to Pin-19 (Input & Output) of ICBase-3.
  8. Connect Seven segment display 1 to Pin-20 (Input & Output) of ICBase-4.
  9. Connect Pin-20 (Input & Output) of ICBase-5 to Pin-18 (Input & Output) of ICBase-1.
  10. Connect Pin-1 (Input & Output) of ICBase-5 to Pin-18 (Input & Output) of ICBase-2.
  11. Connect Pin-3 (Input & Output) of ICBase-5 to Pin-18 (Input & Output) of ICBase-3.
  12. Connect Pin-5 (Input & Output) of ICBase-5 to VCC Port.
  13. Connect Pin-2 (Input & Output) of ICBase-5 to Output-0.
  14. Connect Pin-13 (Input & Output) of ICBase-1 to Pin-2 (Input & Output) of ICBase-2.
  15. Connect Pin-16 (Input & Output) of ICBase-1 to Pin-5 (Input & Output) of ICBase-2.
  16. Connect Output-2 to GND Port.
