Untitled circuit
100%

Integrated Circuits Used

74LS04 74LS08 74LS32

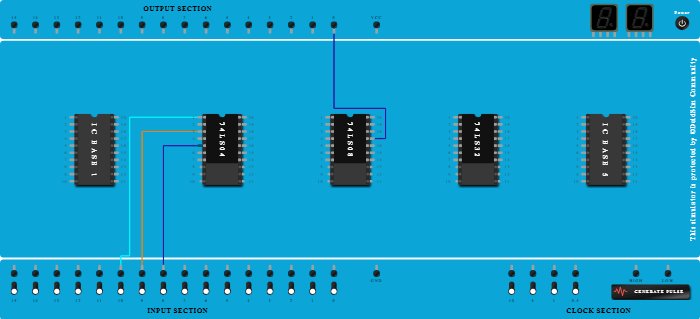

Procedure

  1. Add IC 74LS04 into ICBase-2 (74LS04).
  2. Add IC 74LS08 into ICBase-3 (74LS08).
  3. Add IC 74LS32 into ICBase-4 (74LS32).
  4. Connect Output-0 to Pin-17 (Output) of ICBase-3 (74LS08).
  5. Connect Pin-1 (Input) of ICBase-2 (74LS04) to Input-10.
  6. Connect Input-9 to Pin-3 (Input) of ICBase-2 (74LS04).
  7. Connect Input-8 to Pin-5 (Input) of ICBase-2 (74LS04).
