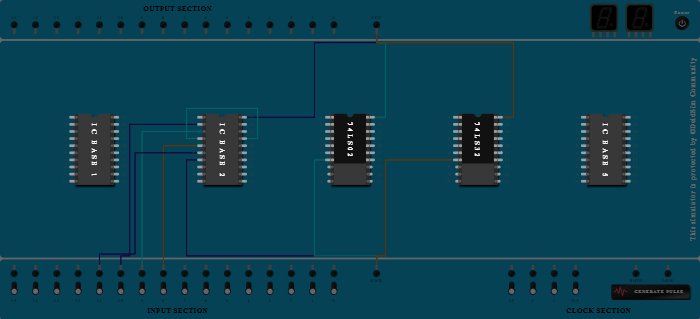

Integrated Circuits Used

74LS02 74LS32

Procedure

  1. Add IC 74LS02 into ICBase-3 (74LS02).
  2. Add IC 74LS32 into ICBase-4 (74LS32).
  3. Connect Pin-20 (Input & Output) of ICBase-2 to VCC Port.
  4. Connect Pin-20 (VCC) of ICBase-3 (74LS02) to VCC Port.
  5. Connect Pin-20 (VCC) of ICBase-4 (74LS32) to VCC Port.
  6. Connect Pin-7 (Input & Output) of ICBase-2 to GND Port.
  7. Connect Pin-7 (Ground) of ICBase-3 (74LS02) to GND Port.
  8. Connect Pin-7 (Ground) of ICBase-4 (74LS32) to GND Port.
  9. Connect Pin-2 (Input & Output) of ICBase-2 to Input-10.
  10. Connect Pin-3 (Input & Output) of ICBase-2 to Input-9.
  11. Connect Pin-5 (Input & Output) of ICBase-2 to Input-8.
  12. Connect Pin-6 (Input & Output) of ICBase-2 to Input-11.
  13. Connect Pin-17 (Input & Output) of ICBase-2 to Pin-4 (Input & Output) of ICBase-2.
