Integrated Circuits Used

74LS32 74LS04

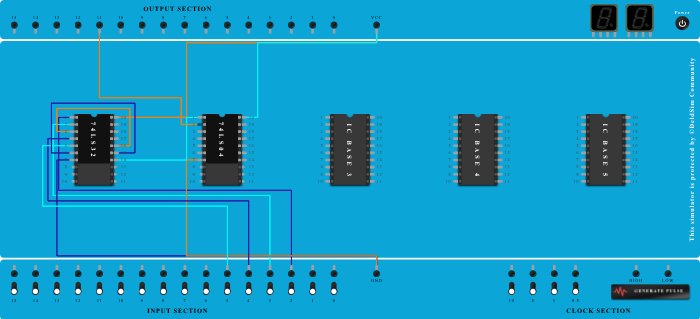

Procedure

  1. Add IC 74LS32 into ICBase-1 (74LS32).
  2. Add IC 74LS04 into ICBase-2 (74LS04).
  3. Connect Input-2 to Pin-1 (Input) of ICBase-1 (74LS32).
  4. Connect Input-3 to Pin-2 (Input) of ICBase-1 (74LS32).
  5. Connect Pin-20 (VCC) of ICBase-1 (74LS32) to VCC Port.
  6. Connect Pin-7 (Ground) of ICBase-1 (74LS32) to GND Port.
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS04).
  8. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS04).
  9. Connect Input-4 to Pin-4 (Input) of ICBase-1 (74LS32).
  10. Connect Input-5 to Pin-5 (Input) of ICBase-1 (74LS32).
  11. Connect Pin-16 (Input) of ICBase-1 (74LS32) to Pin-3 (Output) of ICBase-1 (74LS32).
  12. Connect Pin-15 (Input) of ICBase-1 (74LS32) to Pin-6 (Output) of ICBase-1 (74LS32).
  13. Connect Pin-1 (Input) of ICBase-2 (74LS04) to Pin-14 (Output) of ICBase-1 (74LS32).
  14. Connect Output-11 to Pin-2 (Output) of ICBase-2 (74LS04).
