New Circuit
100%

Integrated Circuits Used

74LS00

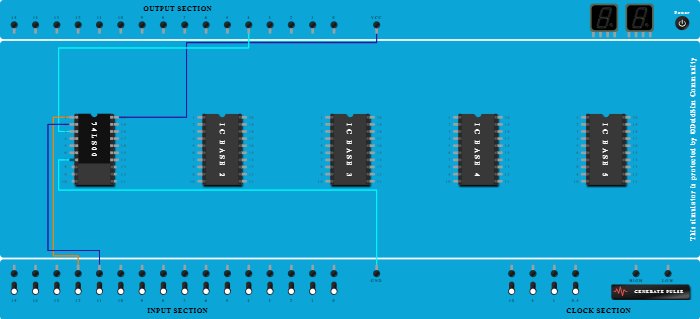

Procedure

  1. Add IC 74LS00 into ICBase-1 (74LS00).
  2. Connect Pin-20 (VCC) of ICBase-1 (74LS00) to VCC Port.
  3. Connect Pin-3 (Output) of ICBase-1 (74LS00) to Output-4.
  4. Connect Pin-1 (Input) of ICBase-1 (74LS00) to Input-12.
  5. Connect Pin-2 (Input) of ICBase-1 (74LS00) to Input-11.
  6. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS00).
