Procedure

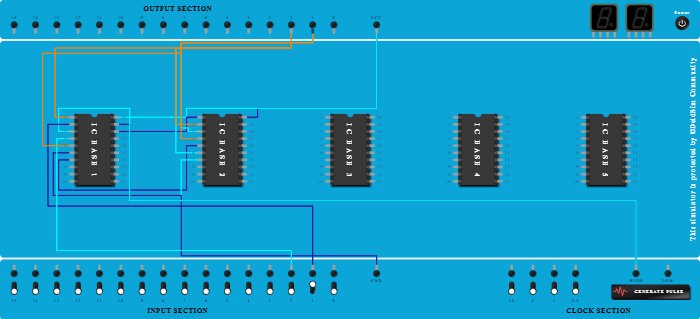

  1. Connect VCC Port to Pin-20 (Input & Output) of ICBase-2.
  2. Connect Pin-20 (Input & Output) of ICBase-1 to VCC Port.
  3. Connect Pin-18 (Input & Output) of ICBase-1 to Pin-1 (Input & Output) of ICBase-2.
  4. Connect Pin-3 (Input & Output) of ICBase-2 to Output-1.
  5. Connect Output-1 to Pin-4 (Input & Output) of ICBase-2.
  6. Connect Pin-7 (Input & Output) of ICBase-1 to Pin-5 (Input & Output) of ICBase-2.
  7. Connect Pin-7 (Input & Output) of ICBase-2 to GND Port.
  8. Connect GND Port to Pin-6 (Input & Output) of ICBase-1.
  9. Connect Pin-6 (Input & Output) of ICBase-2 to Output-2.
  10. Connect Output-2 to Pin-2 (Input & Output) of ICBase-2.
  11. Connect Manual clock Port to Pin-19 (Input & Output) of ICBase-1.
  12. Connect Pin-3 (Input & Output) of ICBase-1 to Manual clock Port.
  13. Connect Pin-1 (Input & Output) of ICBase-1 to Output-2.
  14. Connect Input-1 to Pin-2 (Input & Output) of ICBase-1.
  15. Connect Pin-4 (Input & Output) of ICBase-1 to Input-2.
  16. Connect Pin-5 (Input & Output) of ICBase-1 to Output-1.
