Untitled circuit

Gauri G
Gauri G
Created on Apr 9, 2026 0 0 1
Untitled circuit
100%

Integrated Circuits Used

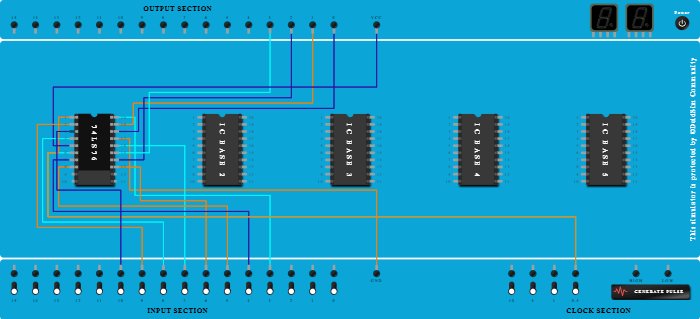

Procedure

  1. Add IC 74LS76 into ICBase-1 (74LS76).
  2. Connect GND Port to Pin-17 (Ground) of ICBase-1 (74LS76).
  3. Connect Input-3 to Pin-20 (Input) of ICBase-1 (74LS76).
  4. Connect Output-1 to Pin-19 (Output) of ICBase-1 (74LS76).
  5. Connect Output-0 to Pin-18 (Output) of ICBase-1 (74LS76).
  6. Connect Input-7 to Pin-16 (Input) of ICBase-1 (74LS76).
  7. Connect Input-6 to Pin-13 (Input) of ICBase-1 (74LS76).
  8. Connect Output-2 to Pin-14 (Output) of ICBase-1 (74LS76).
  9. Connect Output-3 to Pin-15 (Output) of ICBase-1 (74LS76).
  10. Connect Input-5 to Pin-8 (Input) of ICBase-1 (74LS76).
  11. Connect Input-4 to Pin-7 (Input) of ICBase-1 (74LS76).
  12. Connect Clock port of 0.5Hz frequency to Pin-6 (Input) of ICBase-1 (74LS76).
  13. Connect Clock port of 0.5Hz frequency to Pin-1 (Input) of ICBase-1 (74LS76).
  14. Connect VCC Port to Pin-5 (VCC) of ICBase-1 (74LS76).
  15. Connect Input-8 to Pin-4 (Input) of ICBase-1 (74LS76).
  16. Connect Input-9 to Pin-2 (Input) of ICBase-1 (74LS76).
  17. Connect Input-10 to Pin-3 (Input) of ICBase-1 (74LS76).
