New Circuit

Bhaumik Ghode
Bhaumik Ghode
• Created on Apr 9, 2026 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Integrated Circuits Used

74LS76

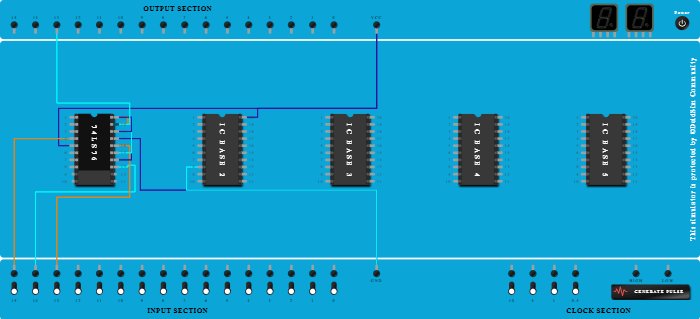

Procedure

  1. Add IC 74LS76 into ICBase-1 (74LS76).
  2. Connect VCC Port to Pin-5 (VCC) of ICBase-1 (74LS76).
  3. Connect Input-15 to Pin-4 (Input) of ICBase-1 (74LS76).
  4. Connect Input-14 to Pin-13 (Input) of ICBase-1 (74LS76).
  5. Connect Input-13 to Pin-16 (Input) of ICBase-1 (74LS76).
  6. Connect GND Port to Pin-17 (Ground) of ICBase-1 (74LS76).
  7. Connect VCC Port to Pin-20 (Input & Output) of ICBase-2.
  8. Connect GND Port to Pin-8 (Input & Output) of ICBase-2.
  9. Connect Pin-20 (Input) of ICBase-1 (74LS76) to Pin-14 (Output) of ICBase-1 (74LS76).
  10. Connect Pin-20 (Input) of ICBase-1 (74LS76) to Pin-15 (Output) of ICBase-1 (74LS76).
  11. Connect Pin-19 (Output) of ICBase-1 (74LS76) to Pin-20 (Input) of ICBase-1 (74LS76).
  12. Connect Pin-20 (Input) of ICBase-1 (74LS76) to Pin-18 (Output) of ICBase-1 (74LS76).
  13. Connect Output-13 to Pin-19 (Output) of ICBase-1 (74LS76).
