Integrated Circuits Used

74LS02

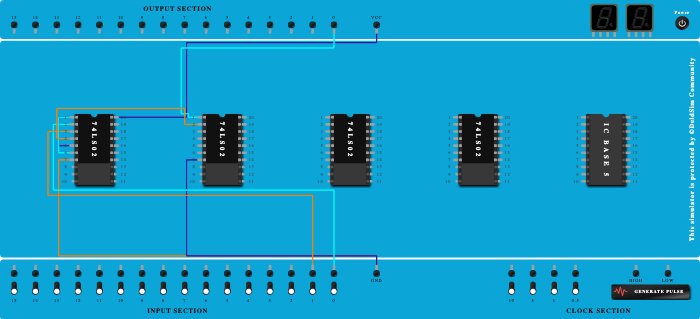

Procedure

  1. Add IC 74LS02 into ICBase-1 (74LS02).
  2. Add IC 74LS02 into ICBase-2 (74LS02).
  3. Add IC 74LS02 into ICBase-3 (74LS02).
  4. Add IC 74LS02 into ICBase-4 (74LS02).
  5. Connect Pin-20 (VCC) of ICBase-1 (74LS02) to VCC Port.
  6. Connect Pin-1 (Output) of ICBase-2 (74LS02) to Output-0.
  7. Connect Pin-7 (Ground) of ICBase-1 (74LS02) to GND Port.
  8. Connect Pin-7 (Ground) of ICBase-2 (74LS02) to GND Port.
  9. Connect Input-0 to Pin-2 (Input) of ICBase-1 (74LS02).
  10. Connect Input-1 to Pin-3 (Input) of ICBase-1 (74LS02).
  11. Connect Pin-5 (Input) of ICBase-1 (74LS02) to Pin-1 (Output) of ICBase-1 (74LS02).
  12. Connect Pin-6 (Input) of ICBase-1 (74LS02) to Pin-1 (Output) of ICBase-1 (74LS02).
  13. Connect Pin-4 (Output) of ICBase-1 (74LS02) to Pin-2 (Input) of ICBase-2 (74LS02).
