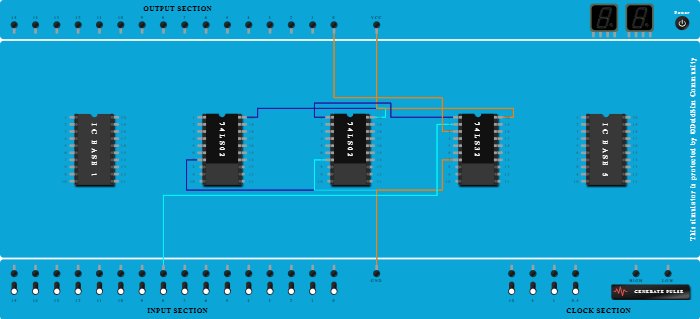

Integrated Circuits Used

74LS02 74LS32

Procedure

  1. Add IC 74LS02 into ICBase-2 (74LS02).
  2. Add IC 74LS02 into ICBase-3 (74LS02).
  3. Add IC 74LS32 into ICBase-4 (74LS32).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS02).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS02).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS32).
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS02).
  8. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS02).
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS32).
  10. Connect Pin-1 (Input) of ICBase-4 (74LS32) to Pin-1 (Output) of ICBase-3 (74LS02).
  11. Connect Input-8 to Pin-2 (Input) of ICBase-4 (74LS32).
  12. Connect Output-0 to Pin-3 (Output) of ICBase-4 (74LS32).
