New Circuit

JITHENDAR
JITHENDAR K
• Created on Apr 7, 2026 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Integrated Circuits Used

74LS00

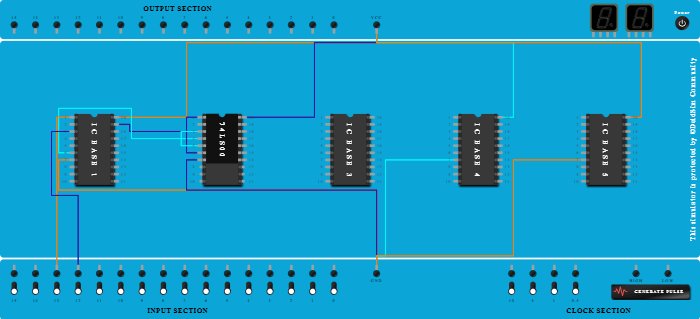

Procedure

  1. Add IC 74LS00 into ICBase-2 (74LS00).
  2. Connect Pin-20 (Input & Output) of ICBase-1 to VCC Port.
  3. Connect Pin-20 (VCC) of ICBase-2 (74LS00) to VCC Port.
  4. Connect Pin-20 (Input & Output) of ICBase-4 to VCC Port.
  5. Connect Pin-20 (Input & Output) of ICBase-5 to VCC Port.
  6. Connect Pin-3 (Output) of ICBase-2 (74LS00) to Pin-19 (Input & Output) of ICBase-1.
  7. Connect Pin-4 (Input) of ICBase-2 (74LS00) to Pin-6 (Input & Output) of ICBase-1.
  8. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  9. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS00).
  10. Connect Pin-7 (Input & Output) of ICBase-4 to GND Port.
  11. Connect Pin-7 (Input & Output) of ICBase-5 to GND Port.
  12. Connect Pin-6 (Output) of ICBase-2 (74LS00) to Pin-1 (Input) of ICBase-2 (74LS00).
  13. Connect Pin-5 (Input) of ICBase-2 (74LS00) to Pin-3 (Output) of ICBase-2 (74LS00).
  14. Connect Input-13 to Pin-1 (Input & Output) of ICBase-1.
  15. Connect Input-12 to Pin-3 (Input & Output) of ICBase-1.
