New Circuit
100%

Integrated Circuits Used

74LS32 74LS02

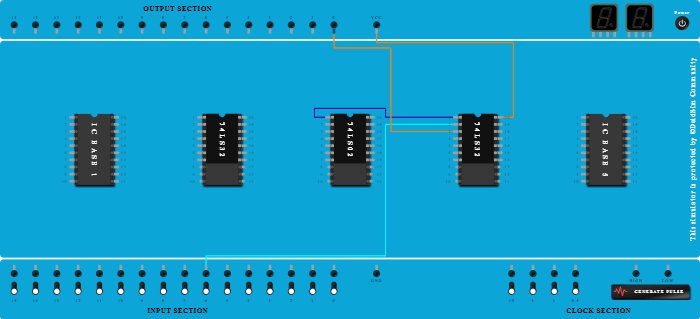

Procedure

  1. Add IC 74LS32 into ICBase-2 (74LS32).
  2. Add IC 74LS02 into ICBase-3 (74LS02).
  3. Add IC 74LS32 into ICBase-4 (74LS32).
  4. Connect Pin-20 (VCC) of ICBase-4 (74LS32) to VCC Port.
  5. Connect Pin-1 (Input) of ICBase-4 (74LS32) to Pin-1 (Output) of ICBase-3 (74LS02).
  6. Connect Pin-2 (Input) of ICBase-4 (74LS32) to Input-6.
  7. Connect Pin-3 (Output) of ICBase-4 (74LS32) to Output-0.
