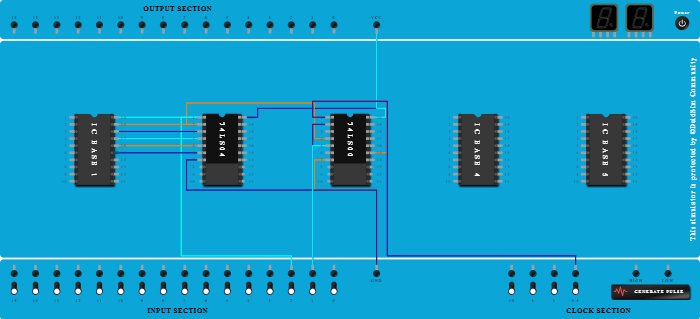

Procedure

  1. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS04).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS00).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS00).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS04).
  5. Connect Pin-1 (Input) of ICBase-2 (74LS04) to Input-2.
  6. Connect Pin-2 (Output) of ICBase-2 (74LS04) to Pin-4 (Input) of ICBase-3 (74LS00).
  7. Connect Input-1 to Pin-2 (Input) of ICBase-3 (74LS00).
  8. Connect Input-1 to Pin-5 (Input) of ICBase-3 (74LS00).
  9. Connect Pin-15 (Input) of ICBase-3 (74LS00) to Pin-1 (Input) of ICBase-3 (74LS00).
  10. Add IC 74LS04 into ICBase-2 (74LS04).
  11. Add IC 74LS00 into ICBase-3 (74LS00).
  12. Connect Pin-1 (Input) of ICBase-3 (74LS00) to Clock port of 0.5Hz frequency.
  13. Connect Pin-20 (Input & Output) of ICBase-1 to Pin-1 (Input) of ICBase-2 (74LS04).
  14. Connect Pin-2 (Output) of ICBase-2 (74LS04) to Pin-19 (Input & Output) of ICBase-1.
