New Circuit

reshma
reshma
• Created on Feb 17, 2026 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Integrated Circuits Used

74LS02 74LS32

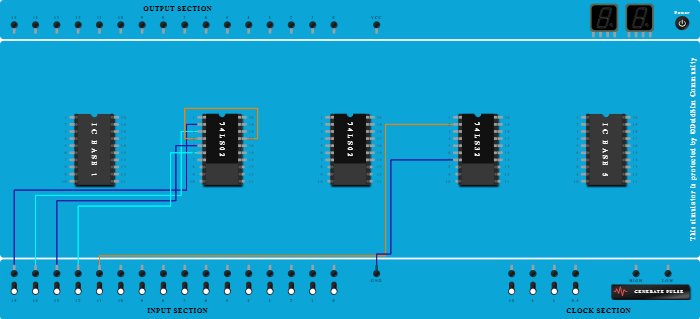

Procedure

  1. Add IC 74LS02 into ICBase-2 (74LS02).
  2. Add IC 74LS02 into ICBase-3 (74LS02).
  3. Add IC 74LS32 into ICBase-4 (74LS32).
  4. Connect Input-15 to Pin-2 (Input) of ICBase-2 (74LS02).
  5. Connect Input-14 to Pin-3 (Input) of ICBase-2 (74LS02).
  6. Connect Pin-17 (Input) of ICBase-2 (74LS02) to Pin-4 (Output) of ICBase-2 (74LS02).
  7. Connect Input-13 to Pin-5 (Input) of ICBase-2 (74LS02).
  8. Connect Input-12 to Pin-6 (Input) of ICBase-2 (74LS02).
  9. Connect Pin-2 (Input) of ICBase-4 (74LS32) to Input-11.
  10. Connect Pin-7 (Ground) of ICBase-4 (74LS32) to GND Port.
