Integrated Circuits Used

74LS02 74LS32

Procedure

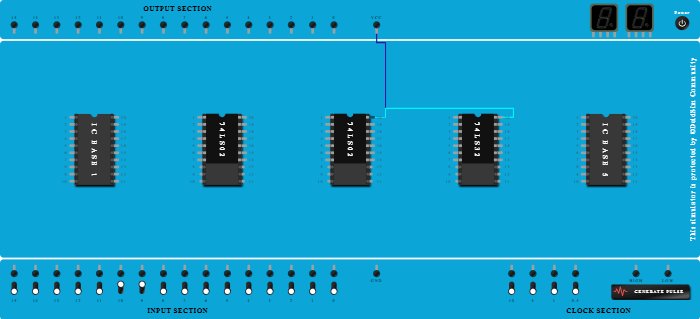

  1. Add IC 74LS02 into ICBase-2 (74LS02).
  2. Add IC 74LS02 into ICBase-3 (74LS02).
  3. Add IC 74LS32 into ICBase-4 (74LS32).
  4. Connect Pin-20 (VCC) of ICBase-3 (74LS02) to VCC Port.
  5. Connect Pin-20 (VCC) of ICBase-4 (74LS32) to Pin-20 (VCC) of ICBase-3 (74LS02).
