Integrated Circuits Used

74LS02 74LS32

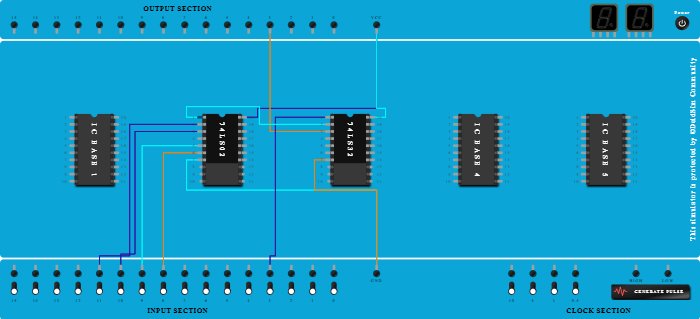

Procedure

  1. Add IC 74LS02 into ICBase-2 (74LS02).
  2. Add IC 74LS32 into ICBase-3 (74LS32).
  3. Connect Pin-2 (Input) of ICBase-2 (74LS02) to Input-11.
  4. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS02).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS32).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS02).
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS32).
  8. Connect Output-3 to Pin-3 (Output) of ICBase-3 (74LS32).
  9. Connect Pin-3 (Input) of ICBase-2 (74LS02) to Input-10.
  10. Connect Pin-5 (Input) of ICBase-2 (74LS02) to Input-9.
  11. Connect Pin-6 (Input) of ICBase-2 (74LS02) to Input-8.
  12. Connect Pin-1 (Input) of ICBase-3 (74LS32) to Input-3.
  13. Connect Pin-2 (Input) of ICBase-3 (74LS32) to Pin-1 (Output) of ICBase-2 (74LS02).
