Integrated Circuits Used

74LS00

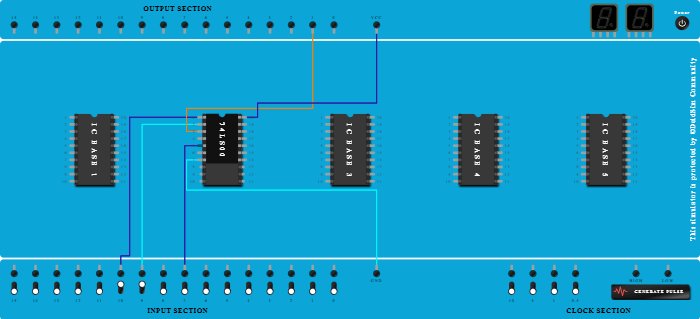

Procedure

  1. Connect Pin-1 (Input) of ICBase-2 (74LS00) to Input-10.
  2. Connect Pin-2 (Input) of ICBase-2 (74LS00) to Input-9.
  3. Connect Output-1 to Pin-3 (Output) of ICBase-2 (74LS00).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS00).
  5. Add IC 74LS00 into ICBase-2 (74LS00).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS00).
  7. Connect Input-7 to Pin-5 (Input) of ICBase-2 (74LS00).
