ex-2 NAND GATE

prashant mungara
prashant mungara
• Created on Feb 24, 2026 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
ex-2 NAND GATE
100%

Integrated Circuits Used

74LS00

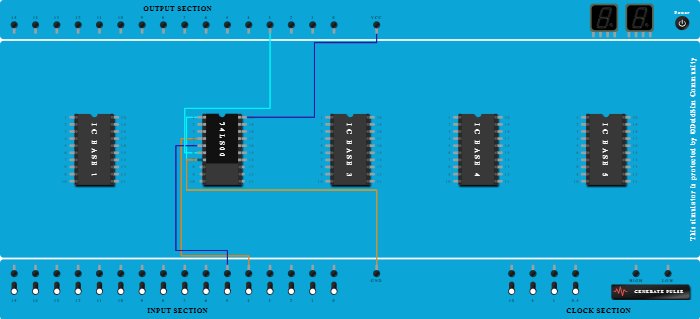

Procedure

  1. Add IC 74LS00 into ICBase-2 (74LS00).
  2. Connect Pin-20 (VCC) of ICBase-2 (74LS00) to VCC Port.
  3. Connect GND Port to Pin-1 (Input) of ICBase-2 (74LS00).
  4. Connect Pin-4 (Input) of ICBase-2 (74LS00) to Input-4.
  5. Connect Pin-5 (Input) of ICBase-2 (74LS00) to Input-5.
  6. Connect Output-3 to Pin-6 (Output) of ICBase-2 (74LS00).
  7. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS00).
