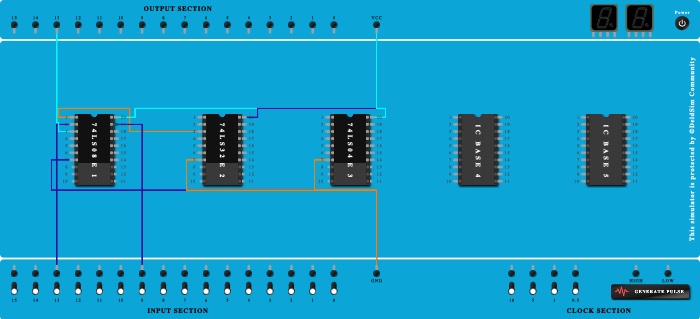

Experiment-1
100%

Integrated Circuits Used

74LS08 74LS32 74LS04

Procedure

  1. Add IC 74LS08 into ICBase-1 (74LS08).
  2. Add IC 74LS32 into ICBase-2 (74LS32).
  3. Add IC 74LS04 into ICBase-3 (74LS04).
  4. Connect Input-13 to Pin-2 (Input) of ICBase-1 (74LS08).
  5. Connect Output-13 to Pin-3 (Output) of ICBase-1 (74LS08).
  6. Connect Pin-3 (Output) of ICBase-2 (74LS32) to Pin-1 (Input) of ICBase-1 (74LS08).
  7. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS08).
  8. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS08).
  9. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS32).
  10. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS32).
  11. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS04).
  12. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  13. Connect Input-9 to Pin-19 (Input) of ICBase-1 (74LS08).
