Untitled circuit

WSSSSSSHSS
WSSSSSSHSS
• Created on Nov 19, 2025 • 0 • 0 • 3
Edit Circuit Copy Circuit Try Yourself
Untitled circuit
100%

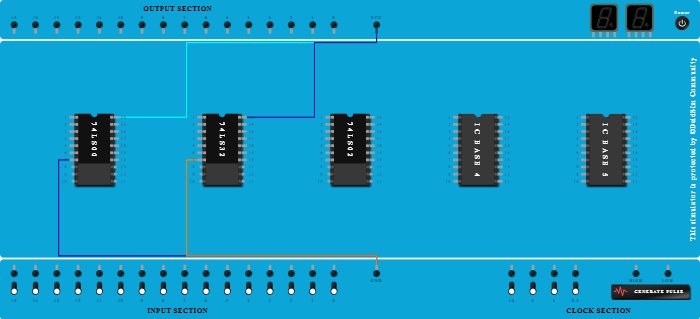

Integrated Circuits Used

74LS00 74LS32 74LS02

Procedure

  1. Add IC 74LS00 into ICBase-1 (74LS00).
  2. Add IC 74LS32 into ICBase-2 (74LS32).
  3. Add IC 74LS02 into ICBase-3 (74LS02).
  4. Connect Pin-7 (Ground) of ICBase-1 (74LS00) to GND Port.
  5. Connect Pin-20 (VCC) of ICBase-1 (74LS00) to VCC Port.
  6. Connect Pin-7 (Ground) of ICBase-2 (74LS32) to GND Port.
  7. Connect Pin-20 (VCC) of ICBase-2 (74LS32) to VCC Port.
