New Circuit

Saumya baranwal
Saumya baranwal
• Created on Nov 18, 2025 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

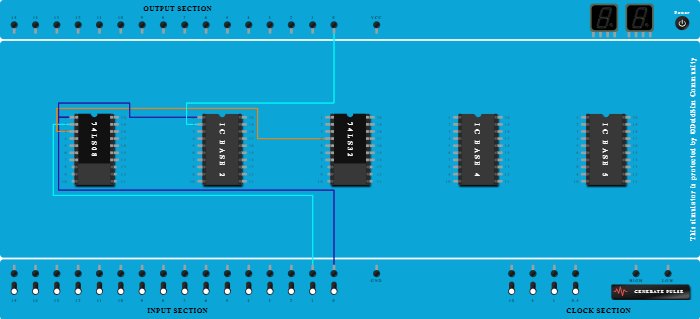

Integrated Circuits Used

74LS32 74LS08

Procedure

  1. Add IC 74LS32 into ICBase-3 (74LS32).
  2. Connect Input-0 to Pin-1 (Input) of ICBase-1 (74LS08).
  3. Connect Input-1 to Pin-2 (Input) of ICBase-1 (74LS08).
  4. Connect Pin-4 (Input) of ICBase-3 (74LS32) to Pin-3 (Output) of ICBase-1 (74LS08).
  5. Connect Pin-1 (Input & Output) of ICBase-2 to Pin-1 (Input) of ICBase-1 (74LS08).
  6. Connect Output-0 to Pin-2 (Input & Output) of ICBase-2.
  7. Add IC 74LS08 into ICBase-1 (74LS08).
