JK flip flop - IT02
100%

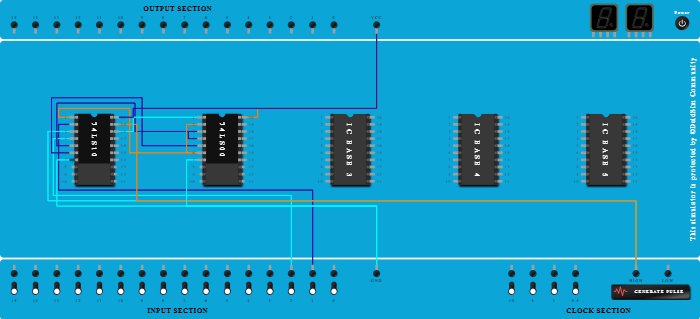

Procedure

  1. Add IC 74LS10 into ICBase-1 (74LS10).
  2. Add IC 74LS00 into ICBase-2 (74LS00).
  3. Connect Input-1 to Pin-2 (Input) of ICBase-1 (74LS10).
  4. Connect Input-2 to Pin-4 (Input) of ICBase-1 (74LS10).
  5. Connect Pin-6 (Output) of ICBase-2 (74LS00) to Pin-1 (Input) of ICBase-1 (74LS10).
  6. Connect Pin-3 (Output) of ICBase-2 (74LS00) to Pin-5 (Input) of ICBase-1 (74LS10).
  7. Connect Manual clock Port to Pin-3 (Input) of ICBase-1 (74LS10).
  8. Connect Manual clock Port to Pin-19 (Input) of ICBase-1 (74LS10).
  9. Connect Pin-5 (Input) of ICBase-2 (74LS00) to Pin-6 (Output) of ICBase-1 (74LS10).
  10. Connect Pin-18 (Output) of ICBase-1 (74LS10) to Pin-1 (Input) of ICBase-2 (74LS00).
  11. Connect Pin-6 (Output) of ICBase-2 (74LS00) to Pin-2 (Input) of ICBase-2 (74LS00).
  12. Connect Pin-3 (Output) of ICBase-2 (74LS00) to Pin-4 (Input) of ICBase-2 (74LS00).
  13. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS00).
  14. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS00).
  15. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS10).
  16. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS10).
