Untitled circuit

Raheem
Raheem
• Created on Nov 16, 2025 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself
Untitled circuit
100%

Integrated Circuits Used

74LS04 74LS32

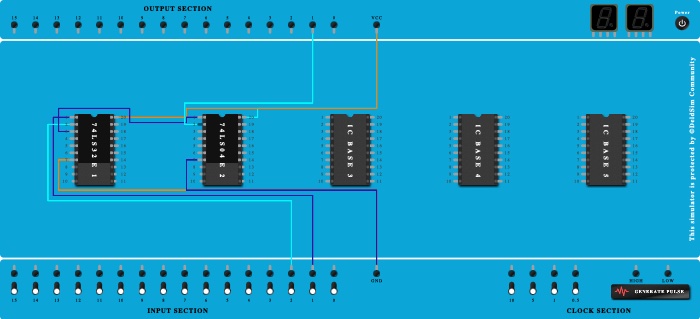

Procedure

  1. Add IC 74LS04 into ICBase-2 (74LS04).
  2. Add IC 74LS32 into ICBase-1 (74LS32).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS32).
  4. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS04).
  5. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS04).
  6. Connect Pin-20 (VCC) of ICBase-1 (74LS32) to VCC Port.
  7. Connect Input-1 to Pin-1 (Input) of ICBase-1 (74LS32).
  8. Connect Input-2 to Pin-2 (Input) of ICBase-1 (74LS32).
  9. Connect Pin-1 (Input) of ICBase-2 (74LS04) to Pin-3 (Output) of ICBase-1 (74LS32).
  10. Connect Output-1 to Pin-2 (Output) of ICBase-2 (74LS04).
