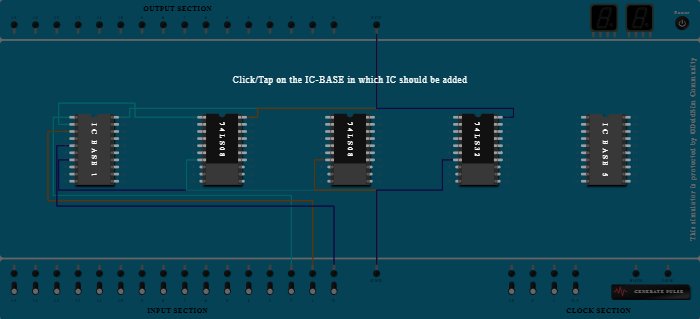

Integrated Circuits Used

74LS08 74LS32

Procedure

  1. Add IC 74LS08 into ICBase-2 (74LS08).
  2. Add IC 74LS08 into ICBase-3 (74LS08).
  3. Add IC 74LS32 into ICBase-4 (74LS32).
  4. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  5. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS08).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS08).
  7. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS32).
  8. Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS08).
  10. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS32).
  11. Connect Input-2 to Pin-1 (Input & Output) of ICBase-1.
  12. Connect Input-1 to Pin-3 (Input & Output) of ICBase-1.
  13. Connect Input-0 to Pin-5 (Input & Output) of ICBase-1.
  14. Connect Pin-1 (Input) of ICBase-2 (74LS08) to Pin-2 (Input & Output) of ICBase-1.
