JK Flip Flop using 3 input NAND Gate - Copy
100%

Integrated Circuits Used

74LS10 74LS00

Description

IC used: 7400 , 7410

Procedure

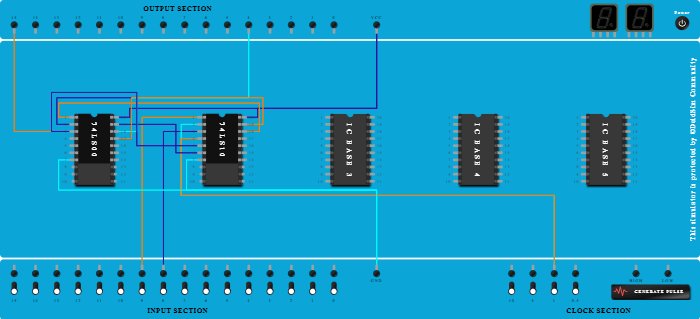

  1. Add IC 74LS10 into ICBase-2 (74LS10).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS10).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS10).
  4. Connect Input-9 to Pin-1 (Input) of ICBase-2 (74LS10).
  5. Connect Input-8 to Pin-3 (Input) of ICBase-2 (74LS10).
  6. Connect Clock port of 1Hz frequency to Pin-2 (Input) of ICBase-2 (74LS10).
  7. Connect Clock port of 1Hz frequency to Pin-4 (Input) of ICBase-2 (74LS10).
  8. Connect GND Port to ICBase-2 (74LS10).
  9. Connect Input-8 to ICBase-2 (74LS10).
  10. Add IC 74LS00 into ICBase-1 (74LS00).
  11. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS00).
  12. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS00).
  13. Connect Pin-1 (Input) of ICBase-1 (74LS00) to Pin-18 (Output) of ICBase-2 (74LS10).
  14. Connect Pin-19 (Input) of ICBase-1 (74LS00) to Pin-6 (Output) of ICBase-2 (74LS10).
  15. Connect Output-4 to Pin-17 (Output) of ICBase-1 (74LS00).
  16. Connect Output-15 to Pin-3 (Output) of ICBase-1 (74LS00).
  17. Connect Pin-17 (Output) of ICBase-1 (74LS00) to Pin-2 (Input) of ICBase-1 (74LS00).
  18. Connect Pin-18 (Input) of ICBase-1 (74LS00) to Pin-3 (Output) of ICBase-1 (74LS00).
  19. Connect Pin-17 (Output) of ICBase-1 (74LS00) to Pin-19 (Input) of ICBase-2 (74LS10).
  20. Connect Pin-5 (Input) of ICBase-2 (74LS10) to Pin-3 (Output) of ICBase-1 (74LS00).
  21. Connect GND Port to ICBase-1 (74LS00).
  22. Connect Output-15 to ICBase-1 (74LS00).
